The M20 75mm Recoilless Rifle

At 114.5 lbs but tripod mounted, firing HE, HEAT and WP, with a 7000 yard range, the M20 Recoilless gave an Infantry squad two-man team as much fire power as an artillery battery. It was deadly against the enemy's principle armor, the T34, and blew away pill boxes and other positions on forward slopes. A small but fearsome hurricane when fired, it took good men to operate it, and good men even to maintain their support positions.

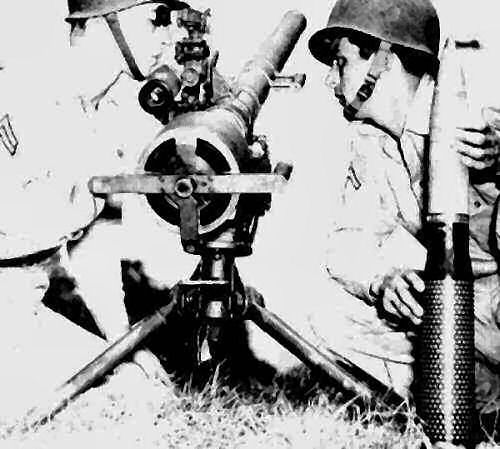

M20 75mm Recoilless Rifle

M20 75mm Recoilless Rifle
M20 75mm Recoilless Rifle

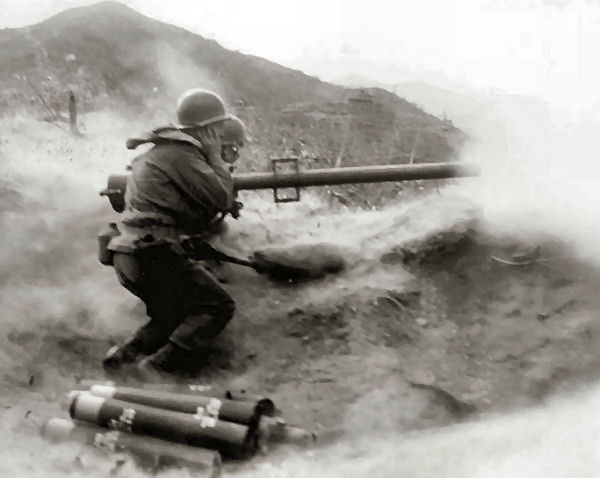

Hill 200 near Qnmong-Myon, 9 November 1951


Weight: 114.5 lbs
Length: 6ft 10in
Operation: Mounted on M1917A1 .30 caliber MG tripod.
Projectiles: HE, 21.86 lbs; High explosive anti tank (HEAT), 20.54 lbs; Smoke (T40, WP), 22.61 lbs
Range: 7000 yards.

The 75mm reckless gave infantry much the same power as if a couple of men were carrying around a German .88. It could take out a T34 at 400 yards, it could destroy pillbox or cave positions, and it could act as enfilading artillery support.

The 3.5 bazooka effectively eliminated the 57mm reckless, by providing about the same power and effectiveness in a lighter package. Together with the 75 mm reckless, the infantry were provided with a deadly effective combination against any enemy that might come at them on the ground.
